“GDIS” well testing mobile lab fitted on “SOBOL” 4x4 platform with pre-installed winch “LKI-Tekhno” designed for slickline conveyed well intervention whilst well testing, remedial and cleanup operations

Mobile Well Testing Lab Mounted on “SOBOL” 4x4 Chassis

COMFORTABLE ALL WHEEL DRIVE WELL LOGGING LAB TRUCK FOR BRIEF WELLSITE TRIPS

Well testing mobile lab fitted on “SOBOL” 4x4 platform with pre-installed winch “LKI-Tekhno” designed for slickline conveyed well intervention whilst well testing, remedial and cleanup operations

Client's datasheet

Description

Mobile lab on “SOBOL” 4x4 platform for well logging and testing represents a versatile comfortable all wheel drive truck. “SOBOL” is a high clearance vehicle cost effective for short duration offroad trips to wellsite.

The van is equipped with a slickline winch “LKI-Tekhno” and a backup drum, an automatic slickline spooler, a jib crane. For better comfort the truck has an independent heater and a bed trunk. Winch is operated using either a control box, or a remote control panel. To keep an H2S vapour off the working area a separation wall can be installed between a drum and an operator’s sections. A winch is operated with the aid of remote controls: a friction wheel, a hand and a parking brake levers


Video Presentation

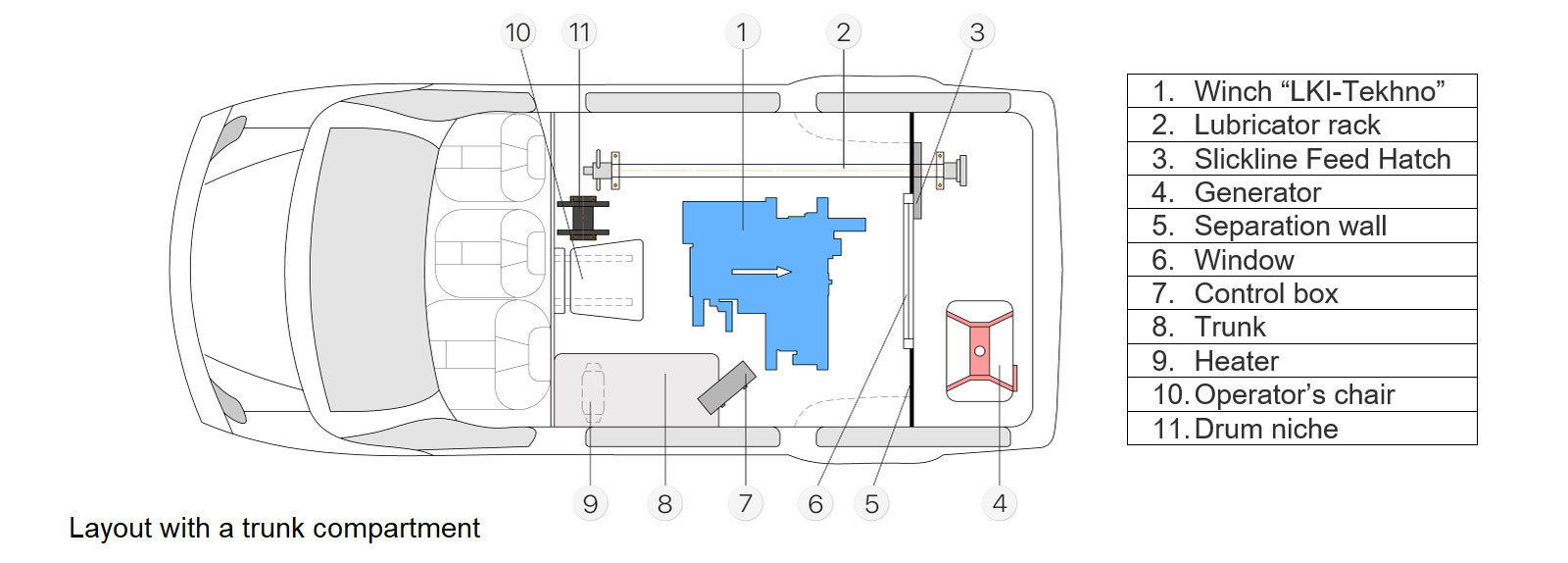

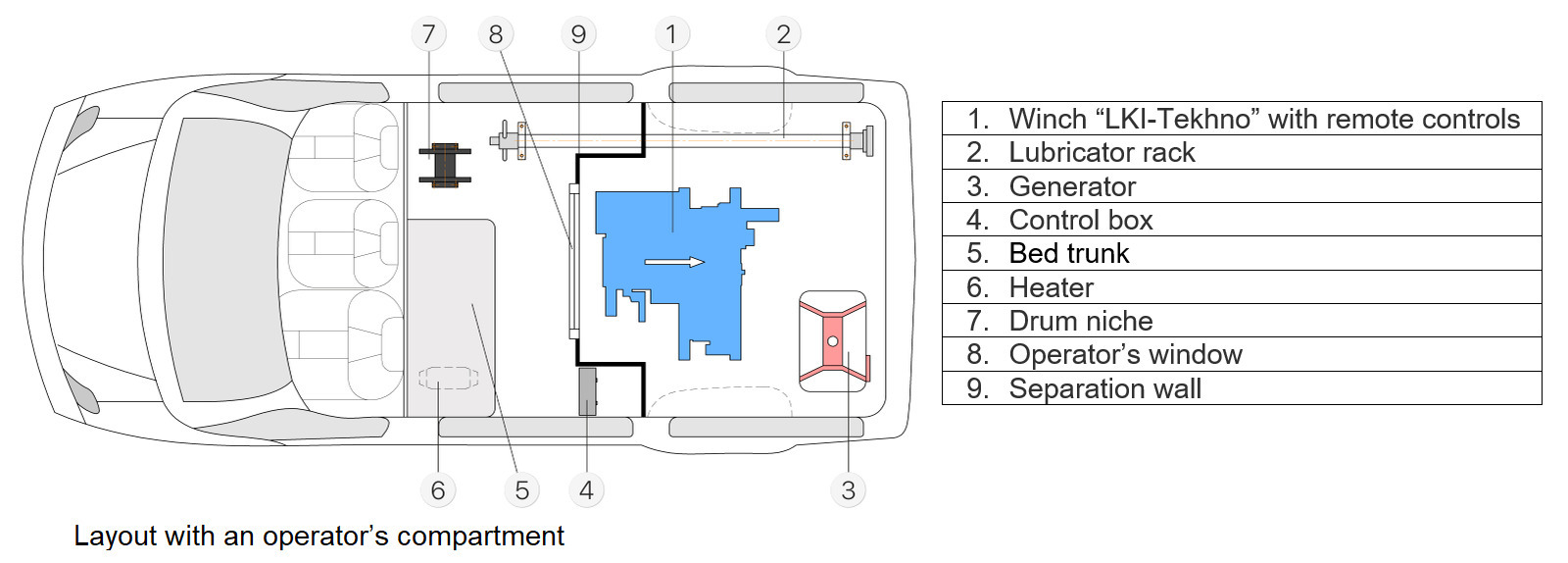

Layout Options

Technical Description

Chassis: GAZ Sobol
Engine: petrol Evotech-2.7 / diesel Cummins ISF
Emission Class: EURO-4
Axle Arrangement: 4х4, with differential lock
Gearbox: mechanical, five-speed
Rear Suspension: heavy duty leaf springs

No. of seats: 3 seats + 1 operator’s seat
Layout: one compartment / two compartments
Compartment options: winch / operator’s / generator section
Floor coating: combined special oil and water repelling durable rubber material and zinc plated steel / ribbed aluminium
Internal lining: laminated plywood and/or ribbed aluminium
Windows: two flush windows – one fixed frame in a sliding door / and a gliding one in the opposite (left hand) side

Slickline winch “LKI-Tekhno”
Winch drive: electric 2.2 kW / 4.0 kW
Control box
Logging control panel “SKK-Tekhno 305”
Wellhead lubricator: L65-21 / L65-35

Generator: stand-alone, power 6.5, fixed / skid mounted
Lighting: winch section 220 V and 12 V, wellhead floodlight: 12/ 220V
Sockets: 220 V
Reel w/ power cable – 50 m
Reel w/ ground cable and a ground cable clamp – 50 m
Independent heater / Coolant heat core
Electric fan heater 220 V, power 2.0 kW

Bed trunk
Winch operator’s chair

L- type jib crane with Hand Chain Hoist/lifting truck frame with an eye-bolt
Spare (LKI-Tekhno) winch drum carrier
Racks for memory tools
Lubricator rack
First aid kit
Fire extinguisher
Emergency road triangle
Spark arrester
